O-Ring
Our O-ring is a loop of elastomer with a round (o-shaped) cross-section, which is used as a mechanical seal or gasket. Our O-ring is specifically designed to be seated in a groove and compressed during assembling of two or more parts, resulting in the creation of a seal at the interface.
We offer variations in profile design otter then circular, which includes; X shaped, D shaped T shaped, silicone rubber o-ring, o-ring packing and other shaped circular packings. All these different designs are available for different applications, as per the environmental conditions & requirements. We are offering different types of automotive o-rings, silicone rubber o rings, teflon o rings, rubber packing rings, rubber o-rings, o-ring packing and more....
For o-ring and rubber packings, we offer different sealing element or material choices, which includes; nit rile(NBR), fluoroelastomer(FKM, FPM), natural rubber, polyacrylate (ACM PA), silicone (MVQ), EPDM and HNBR.
The most important component of any oil seal is the elastomer of the sealing element. We offer a wide range of options that one can choose from, as per their environmental and functioning requirement. The general elastomer includes; nitrile (NBR), EPDM and HNBR, silicone (MVQ), fluoroelastomer (FKM, FPM), polyacrylate (ACM, PA), Polyurethane, natural rubber.

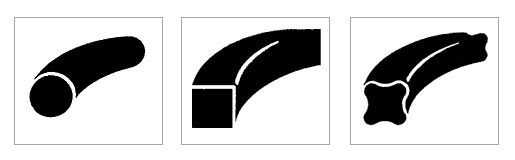

O- Rings Square Rings Quad Shaped Rings
TCK offers a complete line of compounds that are approved to every military and industrial specification. Stock standard compounds include Brna-N (Nitrile), neoprene, EPR, silicone, flourosilicone, and flourocarbon (Viton). Also for unique applications, special rubber compounds, urethane, and Teflon, as well as special sizes are available.

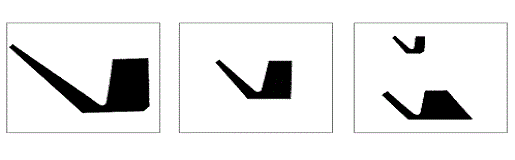

V-Rings
The V-ring is an all-rubber seal. It mounts directly on the shaft and seals axially against the counter-face, housing, bearing race, and similar surfaces. Designed with a long flexible lip, it acts like a mechanical face seal and a lip seal. It can retain lubricants or exclude contaminants. The V-ring also can be used as the primary seal or as a secondary back-up seal. And it is capable of handing a greater amount of eccentricity and misalignment as well as axial movement. Each V-ring can be used for a range of different shaft sizes.

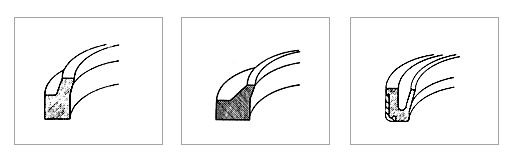

Wiper Rings
For those extremely dirty rod wiping situations, a standard Polyseal can be used as a wiper ring. Properly selected wiper rings will greatly extent the life of internal seals and bearings in hydraulic equipment.

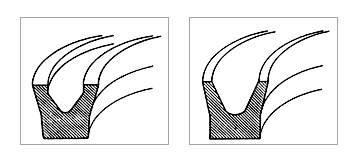

U-Cups
TCK offers a complete line of U-cups constructed of such diverse materials as homogeneous rubbers as well as leather and fabric reinforced rubber compounds. However, when you have an application that requires a special U-cup, TCK's Engineers are ready to work closely with your engineers in designing, tooling, prototyping and testing custom parts.

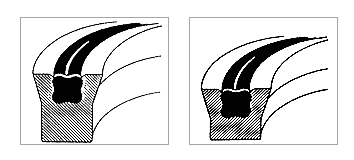

Poly Seals
The polyseals are a family loaded lip U-cups. Each style incorporates the use of a quad shaped rubber energizer to improved the low pressure, low temperature sealing characteristics of a fully molded polyurethane U-cup. Polyseals are available in a borad range of compounds including Fluorotrel, Nitrile, Fluorocarbon, and Ethylene Propylene Elastomer. Polyseals are available in extended range of diameters and cross sections. They seal a broad range of fluids including petroleum based hydraulic oil plus all fire retardant fluids such as phosphate esters and water glycol.
Rubber Piston Cup
TCK offers a complete line of piston cups constructed of homogeneous rubber, urethane, cotton duck and rubber and other materials. The product can be supplied with a center hole to ensure concentricity between cup and piston or you may elect to receive them with no cener hole to adapt one stndard bore size and different piston hardware.
Rubber Packings
We offer a wide range of rubber packings that one can choose from, as per their environmental and functioning requirement.
